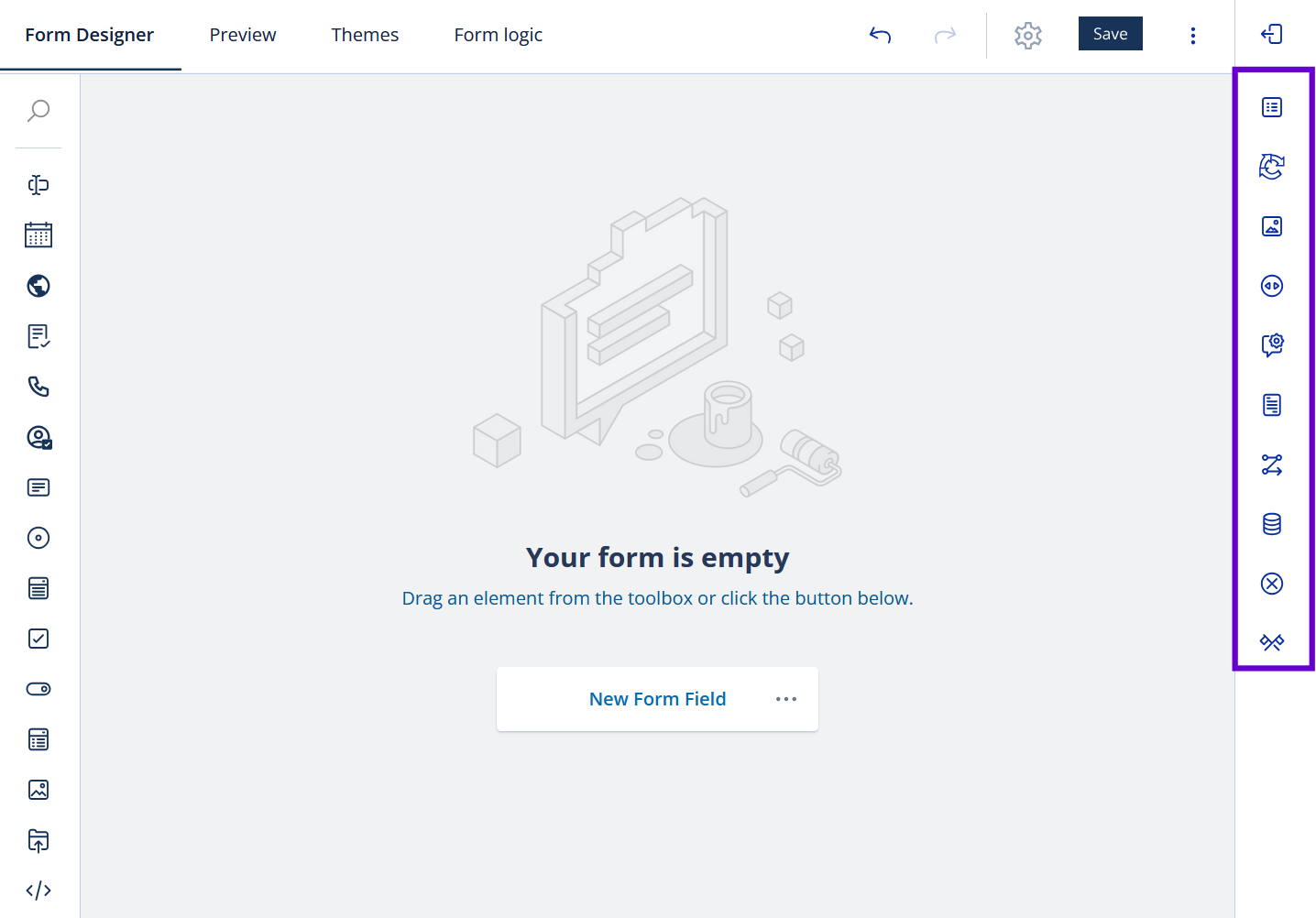

This article covers the Form Designer's Page Properties, which can be accessed in the right-side panel of the Form Designer when no Form Field is selected.
These Page Properties will apply to your Form as a whole, and are separated into categories: General, CAPTCHA, Logo in Form Title, Navigation, Field, Pages, Data, Validation, and Form Complete.
Each of these Form Designer page properties sections described in detail below:

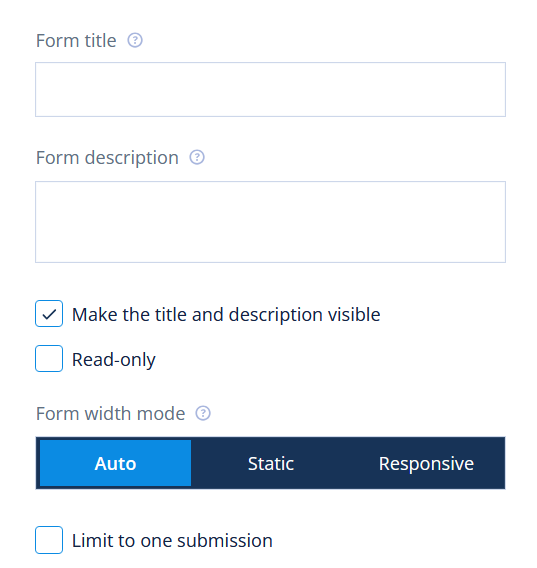

General
The General section allows you to set the following:
Form Title: A user-friendly title for your Form.
Form Description: A subtitle for your Form.
Make the title and description visible: Choose whether the Form Title and Description are visible.
Read-only: Choose whether the Form is read-only. This may be desired in scenarios where you are auto-populating values in all the Form Fields and simply need the respondent to confirm the data by submitting the Form.
Form Width Mode: Choose from Static (fixed width), Responsive (Form occupies full width of screen), or Auto (applies Static or Responsive depending on the field types used).
Limit to one submission: Choose whether to limit each respondent to a single submission, or allow multiple submissions from the same respondent.
Captcha
The Captcha section allows you to toggle the Form's CAPTCHA on and off. Our Forms use Google CAPTCHA, and it is turned on by default. The CAPTCHA will not be shown until the Form is published, and is not visible in preview mode.
If you plan to embed your Form as a widget on a website under a domain that is different from the Domain in your Form's Web Content record, the Google CAPTCHA will allow submissions only if a valid SSL certificate is uploaded for that website's Domain/CNAME. For details on how to upload the necessary SSL certificate, see here.

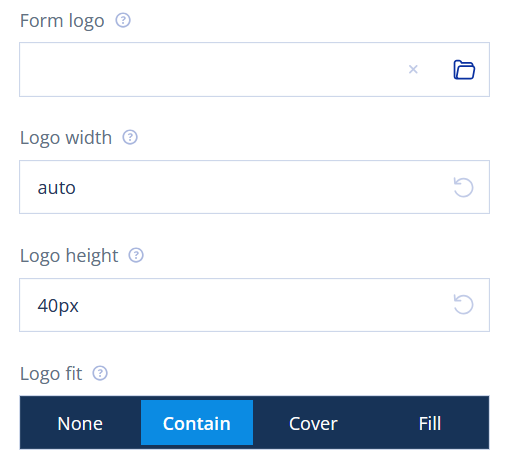

Logo in Form Title
The Logo in Form Title section allows you to upload your company's logo for display alongside the Form Title.
You can specify the Logo width and Logo height, and if desired can apply a Logo Fit setting of Contain, Cover, or Fill: Contain resizes your logo to fit within the Title container, Cover resizes the logo to fill the container (may result in cropping), and Fill stretches the image to fill the container.

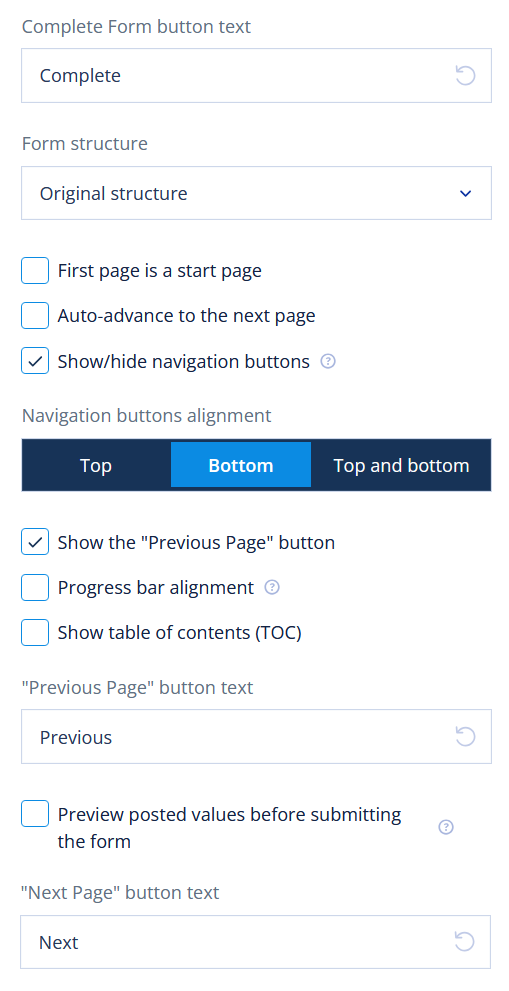

Navigation
The Navigation section is where you configure properties related to your Form's submit/complete button and page navigation buttons. The available properties are:
Complete Form Button Text: Set the text that will display in the Form's submit/complete button.
Form Structure: Choose between Original Structure (the structure you've built), Show all fields on one page, and Show single field per page.
First page is a start page: Toggle whether the first page is a 'Start Page' or simply the beginning of the Form.
Auto-advance to the next page: Toggle whether the Form with auto-advance to the next page or require the "Next" button to be clicked.
Show/hide Navigation Buttons: Toggle visibility of the navigation buttons.
Navigation buttons alignment: Choose between Top, Bottom, or Top and bottom.
Show the "Previous Page" button: Toggle visibility of the "Previous Page" button.
Progress Bar Alignment: Set the visibility and location of the progress bar: Auto (above or below the Form header), Above the Header, Below the Header, Bottom, and Top and Bottom.
When Progress Bar Alignment is enabled, you will be given access to the Progress bar type property with the following options: Completed Pages, Posted Fields, Answered Required Questions, and Correct Fields.
Show table of contents (TOC): Toggle whether to show a Table of Contents within the Form. When enabled, you will be given the option to align the Table of Contents to the left or right.
"Previous Page" button text: Customize the "Previous Page" button text.
"Next Page" button text: Customize the "Next Page" button text.
Preview posted values before submitting the form: Toggle whether to show the respondent a preview of the posted values prior to submitting the Form. When enabled, you can set the preview mode to Show all questions or Show answered questions only, and can customize the button text for the "Review Posts", "Edit Posts", "Previous Page", and "Next Page" buttons.
Progress bar area width: Set the width of the Form's progress bar. Choose between Same as container and Same as form.

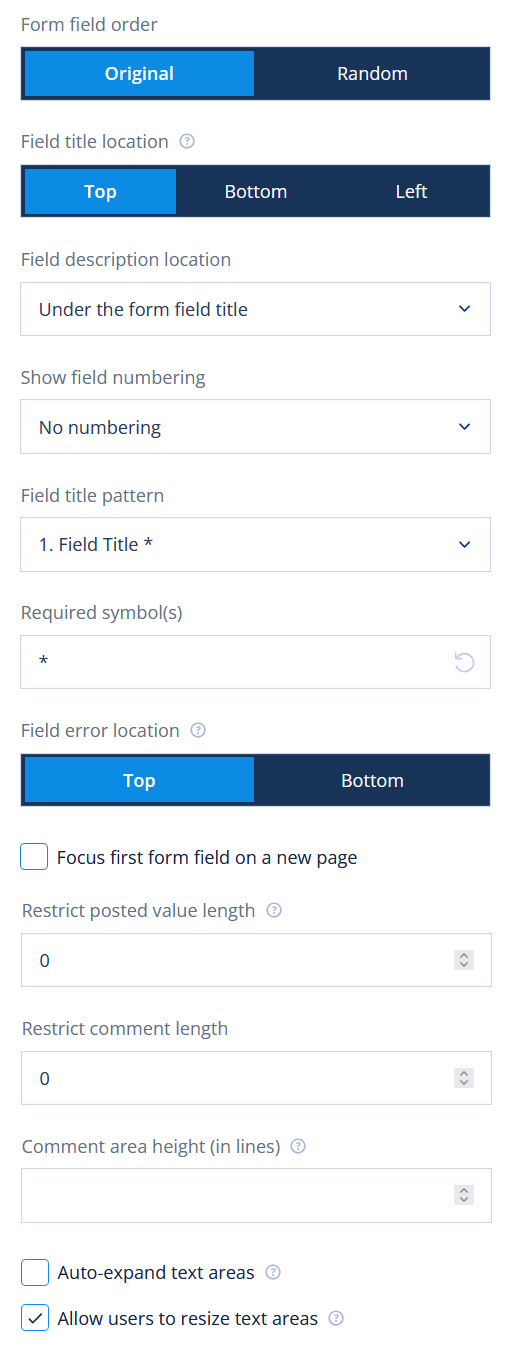

Field
The Field section is where you can adjust properties related to Form Fields. The available properties are:
Form field Order: Choose between Original (display the Form Fields in the same order as in the Designer) or Random.
Field Title Location: Set a Field Title Location for all Fields in the Form. This setting can be overridden by title alignment rules at lower levels: panel, page or field.
Field Description Location: Choose whether the Field Descriptions will display under the Form Field Title or under the input field.
Show Field Numbering: Choose between No Numbering, Auto Numbering, Reset on each page, and Recursive Numbering.
Field Title Pattern: Choose where the required symbol should appear relative to the Field Number and Field Title.
The Field Required Symbol(s): Customize the field required symbol(s).
Field Start Index (1, 2 or 'A', 'a'): Customize the number or letter with which you want to start numbering.
Field Error Location: Sets the location of an error message in relation to the field with invalid input. Choose between: Top (error text placed at the top of the field box), Bottom (error text placed at the bottom of the field box).
Focus first field on a new page: Toggle whether to set focus on the first field of each new page.
Restrict Posted Value Length: Provide a maximum length for values entered into text fields.
Restrict Comment Length: Provide a maximum length for values entered into comment fields.
Comment area height (in lines): Sets the number of displayed lines in text areas for field comments. If the input takes up more lines, the scroll bar appears.
Auto-expand text areas: Enable this property if you want field comments and long text fields to auto-grow in height based on the entered text length.
Allow users to resize text areas: Toggle whether users are able to resize text areas for field comments and long text fields.

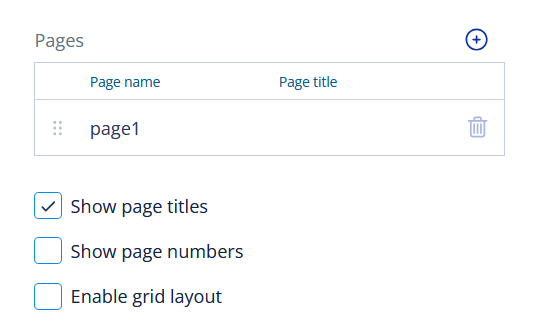

Pages
The Pages section allows you to add additional pages to your Form, give them names, choose whether to show or hide the page titles and/or numbers, as well as enable/disable a grid layout.

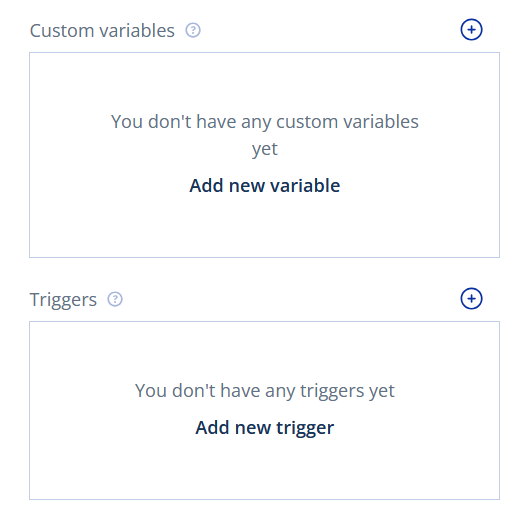

Conditions
The Conditions section allows you to create Custom Variables and Triggers to drive and determine conditional actions within the Form.
Custom Variables serve as intermediate or auxiliary variables used in form calculations. They take respondent inputs as source values. Each custom variable has a unique name and an express it's based on.
Triggers are events or conditions that are based on an expression. Once the expression is evaluated to "true", a trigger sets off an action. Such an action can optionally have a targeted field it affects.
Custom Variables created in the Form's Conditions properties section can be used in the individual Form Fields' Conditions properties to create conditional logic for the desired Form Fields. When Conditions are created within a Form Field's Conditions properties, corresponding Form Logic will be added to the Form Designer's Form Logic tab.
For additional information, see our articles on Expression Syntax and Form Logic.

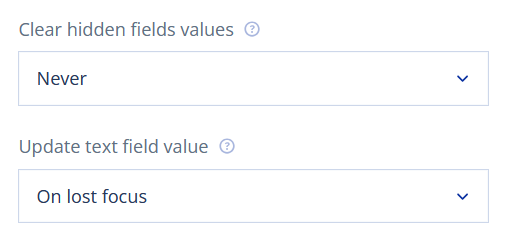

Data
The Data section provides options related to clearing and updating field data. The options provided are:
Clear hidden fields values: Choose if and when to clear values for fields hidden by conditional logic.
Update text field value: Choose when to update text field values: On lost focus (value is updated when the input field loses focus) or While typing (value is updated in real-time, as users are typing).

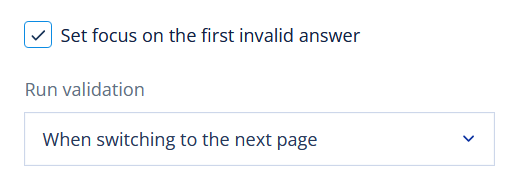

Validation
The Validation section allows you to choose when to run validation on user inputs, and whether to set focus on the first invalid answer, if and when one is found. By default, validation is set to run when switching to the next page, but you can optionally set it to run after an answer is changed, or only when the Form is completed.

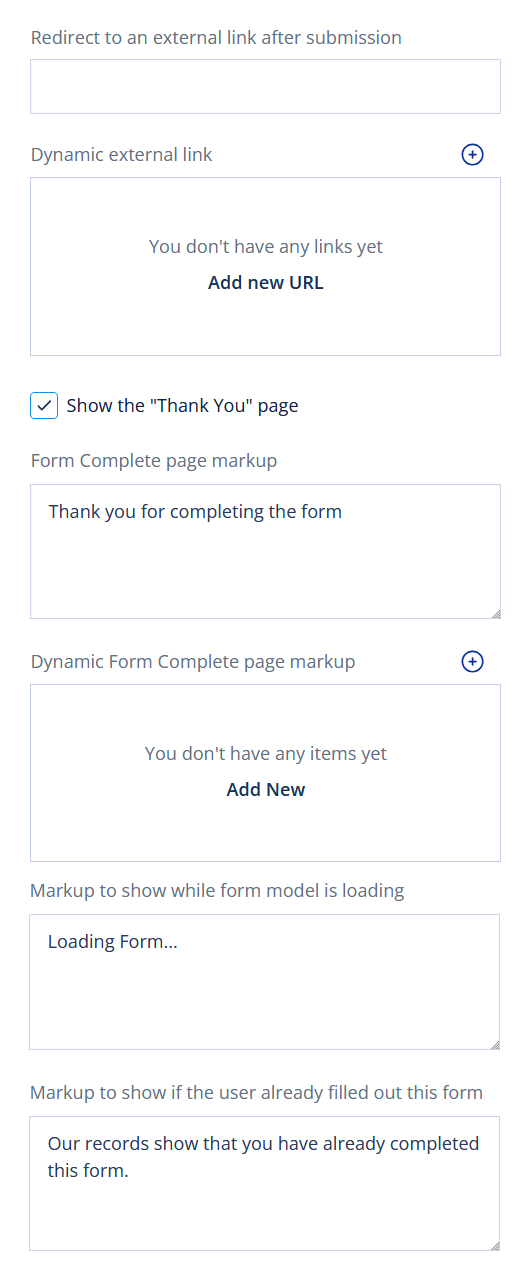

Form Complete
The Form Complete section is where you can configure properties related to the completion and submission of the Form. The available properties are:
Redirect to an external link after submission: Optionally provide a URL to redirect users to after they submit the Form.
Dynamic external link: Use expressions to define dynamic external links for various scenarios.
Show the "Thank You" page: Toggle whether to show the "Thank You"/Form Complete page when the Form is submitted.
Form Complete page markup: Provide the text to be displayed in the "Thank You"/Form Complete page.
Dynamic Form Complete page markup: Use expressions to define dynamic text to be displayed in the "Thank You"/Form Complete page.
Markup to show while form model is loading: Customize the text to show while the Form is loading.
Markup to show if the user already filled out this form: Customize the text to show if a user has already filled out the Form. This will only be used if you have set your Form to only allow a single submission per user.
